10kV JLS-10 Three Core Intermediate Joint

Cold shrink intermediate connection joint for 10kV three core cables, providing waterproof, corrosion-resistant, and high mechanical strength performance. Specially suitable for use in flammable and explosive places such as petroleum, chemical, mining, etc. Compliant with GB50168-92 standard.

Price：

￥0.00
Category：

Cold Shrink Cable Accessories
Browse number：

69
Release time：

2024-10-21 10:35:06
Quantity： - +
Share：

INQUIRY

Detailed Description

10kV Three core intermediate joint

product name	model	Applicable conductor cross-sectional area（mm2）
10KV Three core cold shrink Intermediate Joint	JLS-10/1.1	25-50
	JLS-10/1.2	70-120
	JLS-10/1.3	150-240
	JLS-10/1.4	300-400
10KV three core cold shrink indoor Terminal	NLS-10/3.1	25-50
	NLS-10/3.2	70-120
	NLS-10/3.3	150-240
	NLS-10/3.4	300-400
10KV three core cold shrink outdoor terminal	WLS-10/3.1	25-50
	WLS-10/3.2	70-120
	WLS-10/3.3	150-240
	WLS-10/3.4	300-400

Scope of application

Suitable for the connection of single core three core power cables with voltage levels of 3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, and 8.7/15KV, Plays a role in sealing, insulation, and stress dissipation. Specially suitable for use in flammable and explosive places such as petroleum, chemical, mining, etcs.

Details of accessories for Cold shrink cable accessories

Cold shrink terminal	Semi conductive tape	Silicone grease paste	Cleaning paper	paper card
Protective casing	underfill	PVC	Band-aid	Installation process
sealed tube	Weaving ground wire	Color Circle	J-20	certificate of conformity
constant force spring	tape measure	Construction gloves	ribbon	Insulating tube

Cold shrink cable accessories (power cable accessories) Product feature:

1. Simple installation method: The entire product adopts full cold shrinkage technology. During the installation process, simply pull the wire core, and the elastic body will quickly shrink and tightly adhere to the desired installation position.

2. Stress evacuation effect: After installation, it always maintains appropriate radial pressure on the cable body, tightly connecting the internal interfaces to prevent electrical breakdown due to breathing effects during cable operation. The stress control part is combined with the main insulation to effectively solve the problem of electrical stress concentration on the outer shielding surface of the cable, ensuring reliable insulation and safe operation.

3. Safe and time-saving: No special training required, simple installation and operation, no need for hot work. The fully cold shrink automatic reset technology is easy to install, does not sweat, greatly reduces quality accidents caused by improper operation, and solves the problem of loose or mismatched prefabricated cable accessories.

4. Wide application scenarios: Due to its anti pollution, aging resistance, good hydrophobicity, and excellent heat and cold resistance, it is particularly suitable for high-altitude areas, cold areas, humid areas, salt spray areas, and heavily polluted areas. During the installation process, open flames are not allowed, especially suitable for flammable and explosive places such as petroleum, chemical, mining, and tunnels.

5. Reliable performance: The equipment has excellent quality and high degree of automation.

6. Beautiful appearance: using extended cold shrink tubing and seamless thread.

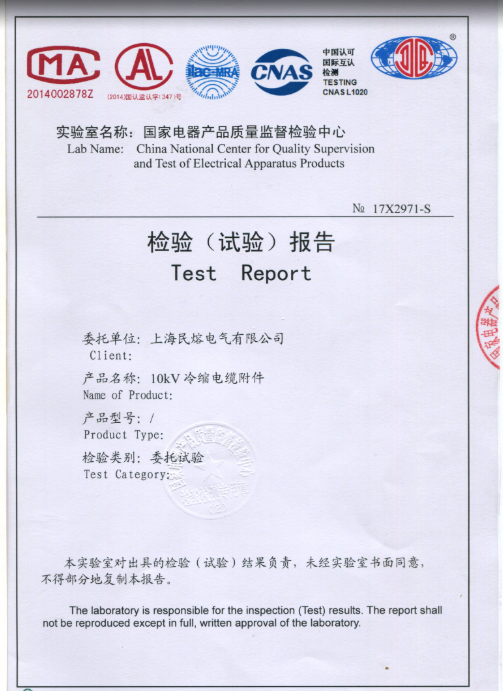

Test Report on 10kV Cold Shrink Cable Accessories
