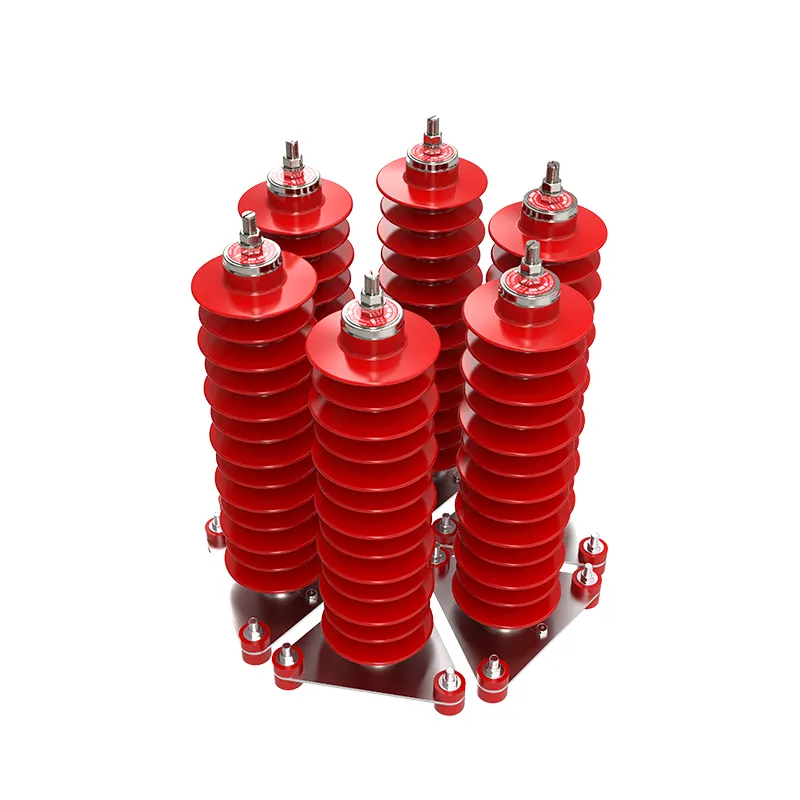

HY5WZ-35kV Power station type lightning arrester

Overview

HY5WZ-35kV lightning arrester is an efficient lightning protection device designed specifically for 35kV transmission and distribution systems. It uses Zinc Oxide valve plates (ZnO) and high-strength silicone rubber composite sheaths to quickly suppress lightning strikes and operational overvoltages, reducing the lightning trip rate of the line by more than 60%. Compliant with GB 11032-2000 (equivalent to IEC 60099-4) standard, it adopts a fully sealed maintenance free design, can withstand extreme temperatures from -40 ° C to+70 ° C, is resistant to salt spray and UV aging, and has a service life of up to 25 years. Widely used in wind farm collection lines, industrial substations, and coastal areas with frequent thunderstorms, providing all-weather protection for power grid stability.

Product Features

1. Small size, light weight, collision resistance, and flexible installation;

2. Special structure, integral molding, no air gap, good sealing performance, moisture-proof and explosion-proof;

3. Long creepage distance, good hydrophobicity, strong stain resistance, stable performance, and reduced operation and maintenance;

4. The unique formula of Zinc oxide Resistors has low leakage current, slow aging rate, and long service life.

5. The actual DC reference voltage, square wave current capacity, and high current withstand capability are all higher than the national standards.

Quality assurance

The company establishes, implements, and maintains a quality management system in accordance with the ISO9001 quality assurance model,

To ensure the high quality of products and services.

Resistance inspection items:

a. Square wave screening;

b. Residual voltage measurement under nominal discharge current;

c. Measurement of 1mA DC reference voltage;

d. Visual inspection;

Lightning arrester outlet inspection:

a. Sealing test;

B DC reference voltage U1mA test;

C. Direct leakage current test at 0.75U1ma;

d. Power frequency reference voltage test

e. Continuous current test

f. Partial discharge test;

Sampling test:

a. Accelerated aging test;

b. 4/10 μ S high current withstand test;

c. 2mS square wave capacity test;
